Chamfering/deburring Machines |
CD 250 manual loading |
CDA 250 Automated |
CDX 250 multi-head |
|
|
Number of chamfering/deburring stations |
No. |
2 |
2 |
2 x 5 |
|
Workpiece dia range |
mm |
15 – 250 |
15 – 250 |
15 – 250 |
|
Module, max. |
mm |
8.0 |
8.0 |
8.0 |
|
Workpiece length, max. without automation |
mm |
580 - |
450 580 |
400 700 |
|
Standard Workpiece face width, max. |
mm |
105 |
105 |
50 |

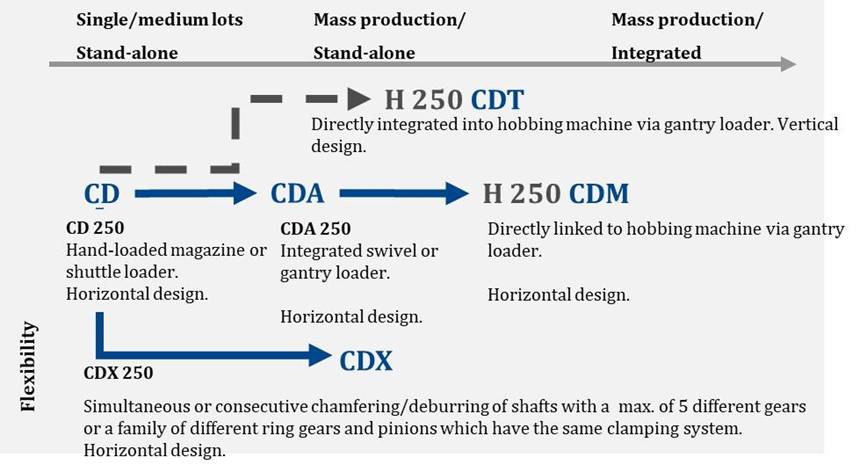

All machine models of the CD series are modularly constructed with common components.
Advantages:
*Latest technology developments flow into all models of the series (drives, tool heads, automation).
*Improved spare
part availability.
*Technology out of one hand – one responsible contact.
*Solutions for a variety of applications.
*Wet and dry processing.
