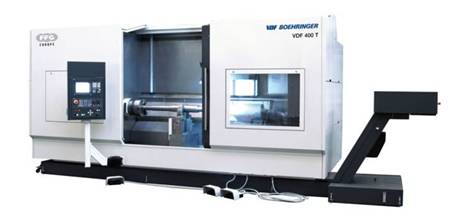

VDF 400 T

Working Range

Swing Diameter

700 mm

Turning Diameter

450(max.650) mm

X-axis Travel

340 mm

Turning Length

1300/2200 mm

Headstock Spindle

Spindle Nose

11

Drive Power(40%DC)

56 kw

Torque(40%DC)

3486 Nm

Speed Max.

2800 rpm

Tailstock

Inner Taper of Quill

MT 5

Turret

Tool Adapter System

VDI 50

Y-axis Travel

-100~+100 mm
